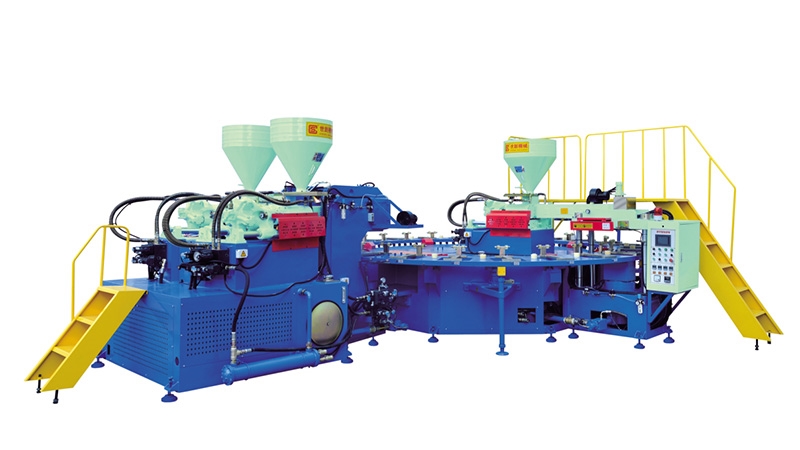

SC-520G3/524G3 Automatic Rotary Type PVC/TPR Shoes Air Blowing Injection Moulding Machine
2.Because of unique machine design and also equipped mould cooling device for operating simple your machine could take more capacity for larger moulds and making products perfectly.
3.In order to make the movements more precise, the major mechanical movements ,as injecting、feeding、disc- rotating、molud-clamping etc all are controlled by the programmable controller.
4.Equipped digital-type proportional controller、our machine could control mould-clamping ,injection and feeding pressures at the right time and more accurate.
5.Selecting servo energy conservation system could save about 30% energy.
| Model | Unit | SC-520G3 | SC-524G3 |
| Raw materials | PVC/TPR | PVC/TPR | |
| Work stations | stations | 20 | 24 |
| Mould clamping force | ton | 80/80 | 80/80 |
| Mould space(max) | mm | 280 | 280 |
| Screw diameter | mm | 65/75 | 65/75 |
| Max injection capacity | g | 600/800 | 600/800 |
| Injection pressure | kg/cm2 | 140 | 140 |
| Injection speed | cm/sec | 0-10 | 0-10 |
| Screw rotating speed | r.p.m | 0-165 | 0-165 |
| Temperature control | 段/stations | 4X4 | 4X4 |
| Heater of barrel | kw | 6.9x2 | 6.9x3 |
| Motor | kw | 15/15/22 | 15/15/22 |
| Total electricity | kw | 56 | 64 |
| Machine size (L*W*H) | mm | 7000X4200X2600 | 7000X5200X2600 |
| Machine weight | kg | 16000 | 17000 |
| The above technical datas are just for reference,in case of any change without any prior notices. | |||
